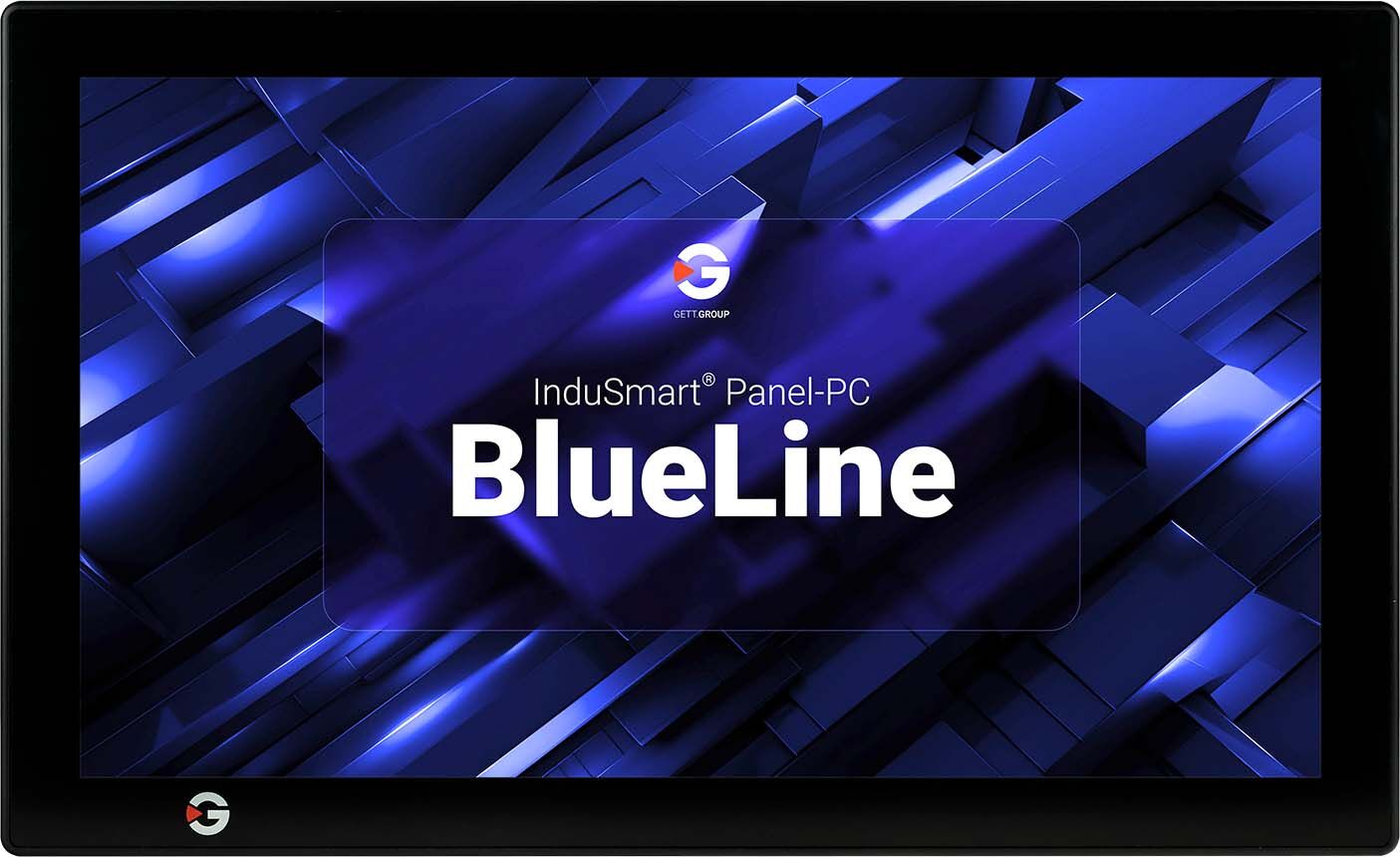

InduSmart® Panel-PC BlueLine 15.6"

The InduSmart® Panel PC BlueLine from GETT is an industrial panel PC for series-oriented machine concepts and economically sensitive applications. It offers robust industrial quality, balanced and specifically dimensioned performance, and long-term availability – for projects where stability, calculable unit costs, and clearly defined performance dimensioning are crucial.

advantages

  • Industrial panel PC with Intel® Celeron platform
  • Optimised for standardised machine platforms and reproducible HMI applications
  • Fanless, vibration-resistant design
  • Robust, industrial-grade construction with IP-protected front
  • Delivered with Windows pre-installed; Linux can be installed
  • Long-term availability for predictable machine cycles
  • Customisation options within the InduSmart® portfolio
Do you have any questions about the product or do you need further information? Just give us a call! You can reach our sales team at:

Your Product request

You may unsubscribe from these communications at any time. For more information on how to unsubscribe, our privacy practices, and how we are committed to protecting and respecting your privacy, please review our Privacy Policy.

GETT Asia Ltd. is committed to protecting and respecting your privacy. We use your personal data solely for managing your account and providing the products and services you have requested. From time to time, we would like to inform you about our products and services, as well as other content that may be of interest to you.

For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Please observe the Terms & Conditions of GETT Asia Ltd.

In order to provide you the content requested, we need to store and process your personal data. If you consent to us storing your personal data for this purpose, please tick the checkbox below.

Order data*

KURZBEZEICHNUNGARTIKELNUMMER
InduSmart Panel-PC BlueLine 15,6"
IPBL013

*Further layouts and individual customisation available on request. MOQ´s apply.

Technical data

  • Area of application:
    industrial
    Guarantee / Warranty:
    2 Jahre Garantie

    Material:

    Front material:
    Glas
    Housing colour:
    Housing material:
    Stahlblech verzinkt
  • Temperature ranges:

    min. storage temperature:
    -20°C
    max. storage temperature:
    75°C
    min. operating temperature:
    0°C
    max. operating temperature:
    50°C
    max. humidity:
    95%

    Fastening:

    Number of fixing points:
    4
    Fastening type:
    VESA
    Thread:
    M4
    Distance X:
    75.00 mm
    Distance Y:
    75.00 mm

    Product dimensions:

    Length (width):
    398.60 mm
    Width (depth):
    253 mm
    Height:
    75.70 mm
    Weight:
    4.40kg
  • Single Board Computer (SBC):

    Processor type:
    Intel Celeron J6412
    Processor base:
    2.00GHz
    Number of cores:
    4
    Clock frequency:
    max 2.6GHz

    card slots:

    Working memory:

    Working memory:
    8.00 GB, DDR4 3200MHz SO-DIMM
    Max. RAM:
    32

    HDD / SSD:

    Hard disk type:
    SSD onboard
    Hard disk capacity:
    128

  • USB interfaces:

    USB-A:
    3x 3.0
    USB-A1:
    3

    Display & Audio:

    HDMI:
    2
    Audio-Out:
    1

    LAN / WLAN:

    Wireless:
    1
    LAN:
    2
  • Display

    Display size:
    15,6"
    Display Touch Technology:
    PCAP/10-Point-Multitouch
    Display brightness:
    450 cd/m²
    Display panel type:
    TFT
    Display resolution:
    1920 x 1080 (FHD)
    Display viewing angle:
    H 85°/ 85°, V 85°/ 85°
    Display aspect ratio:
    16:9
    Display aspect ratio:
    800:1
  • Electrical data:

    Operating voltage:
    24 V
  • Declarations & Certifications:

    • CE

    • EMV*

    • REACH*

    * Explanations available on request
